Two machines on the floor, both purpose-built.
We're starting lean and deliberate — one injection moulding press and one dedicated sole-manufacturing machine — with more capacity to follow as the business grows.

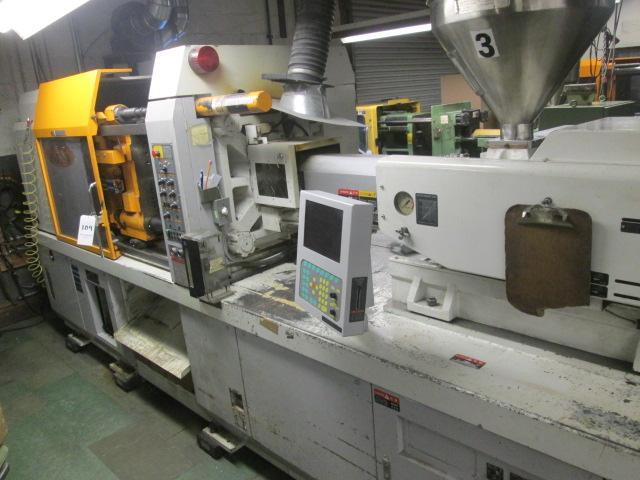

Reference image · Kawaguchi 140T press · not our specific unit
- Model
- Kawaguchi KM140
- Type
- Plastic Injection Moulding Machine
- Clamping Force
- 140 Tonnes
- Screw Diameter
- 42 mm
- Shot Weight
- 159 g (PS)
- Injection Pressure
- 1750 kg/cm²
- Platen Size
- 610 × 610 mm
- Tie Bar Distance
- 410 × 410 mm
- Mould Height
- 180–420 mm
- Voltage
- 380/415V, 3-Phase
Suited to a broad range of injection-moulded plastic parts. Specs sourced from published Kawaguchi 140-ton dealer listings — confirm against our unit's own nameplate before quoting a job to exact tolerance.

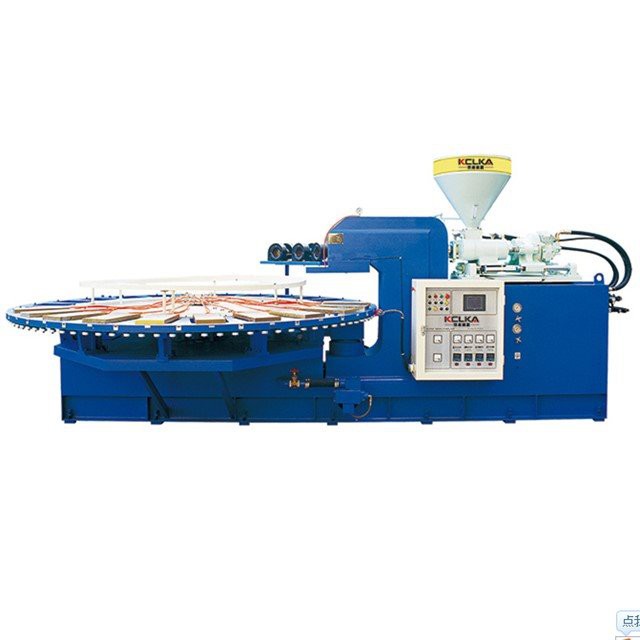

Reference image · KCLKA catalog photo · not our specific unit
- Model
- KCLKA EK8-12P
- Type
- Shoe & Sole Manufacturing Machine
- Working Stations
- 24
- Clamping Force
- 70 Tonnes
- Screw Diameter
- 60 mm
- Injection Capacity
- 785 cm³ (max)
- Motor Power
- 18.5 kW
- Machine Dimensions
- 6200 × 3530 × 2300 mm
- Machine Weight
- 8,800 kg
Dedicated to the shoe manufacturing industry. Specs sourced from KCLKA's own published catalog for this model — confirm against our unit's own nameplate before quoting a job to exact tolerance.
From raw material to finished part.
Raw material intake
Plastic granules and raw material are sourced and prepared to the specification the job calls for.
Moulding & production
Parts are run on the Kawaguchi KM140 or the KCLKA EK8-12P, depending on whether the job is a general component or a sole/footwear part.
Quality check & dispatch
Finished parts are checked against requirements before they leave the unit.
Have a part or component to discuss?
Send us the details and we'll tell you if it's a fit for our current setup.
Get a Quote
